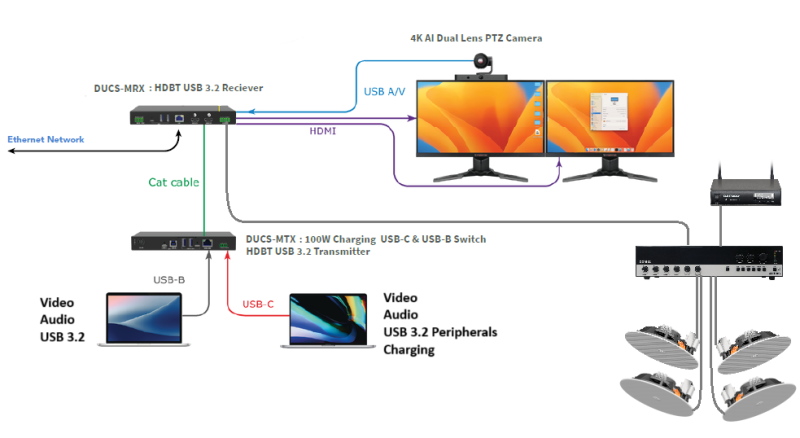

Comprehensive kit, consisting of the DUCS-MTX and DUCS-MRX HDBaseT™ an ideal solution for a conferencing, and presentation solution, specially designed for conference, meeting and traning room scenarios, featuring 2x1 switching a long-distance video, audio, and USB transmission via HDBastT 3.0 technology.
The kit features three USB 3.2 ports (two USB-A, one USB-C) with high-current outputs suitable for powering USB peripherals like cameras or video bars, along with backward compatibility to USB 3.0, 2.0, and 1.1 standards. Two HDMI 2.0 outputs deliver 4K@60Hz video, complemented by a USB 3.2 to 1Gb Ethernet LAN port and balanced audio output.
Featuring USB 3.2 100W Power Delivery (PD) charging capability, RS232 and FSYNC (GPIO) pass-through, firmware updates via a micro-USB port, and comprehensive LED indicators, providing a streamlined, high-performance connectivity experience ideal for professional conference, meeting and training room environments.
Equipped with full-featured USB-C and USB-B inputs, supports 4K video, USB 3.2 data, 1Gbps ethernet over single Cable including 100W charging with automatic switching, which supports USB 3.0 device ports, enabling connection to various conferencing peripherals such as USB Cameras, Conferencing Video-bars, and USB Microphone & speakers, extends USB connectivity over long distances via Valens HDBaseT USB & DisplayLink technology, USB 3.2 data (up to 5Gbps), and Ethernet over a single Cat6A cable, with support for distances up to 100M

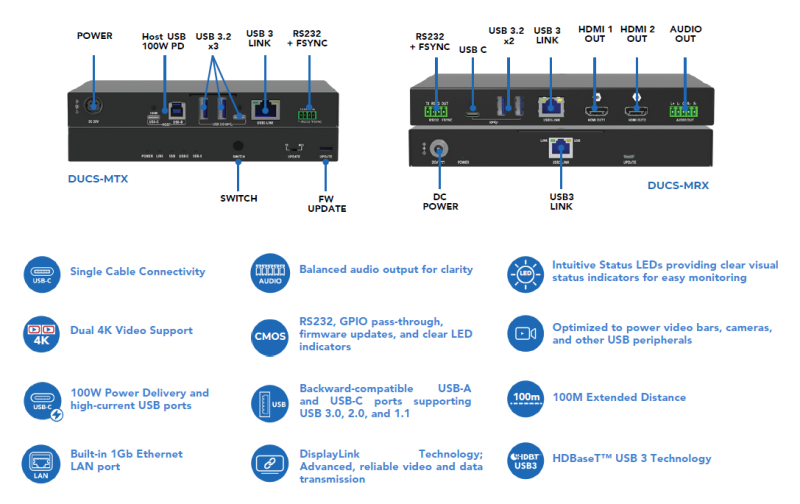

| MODEL | DUCS-MTX&MRX |

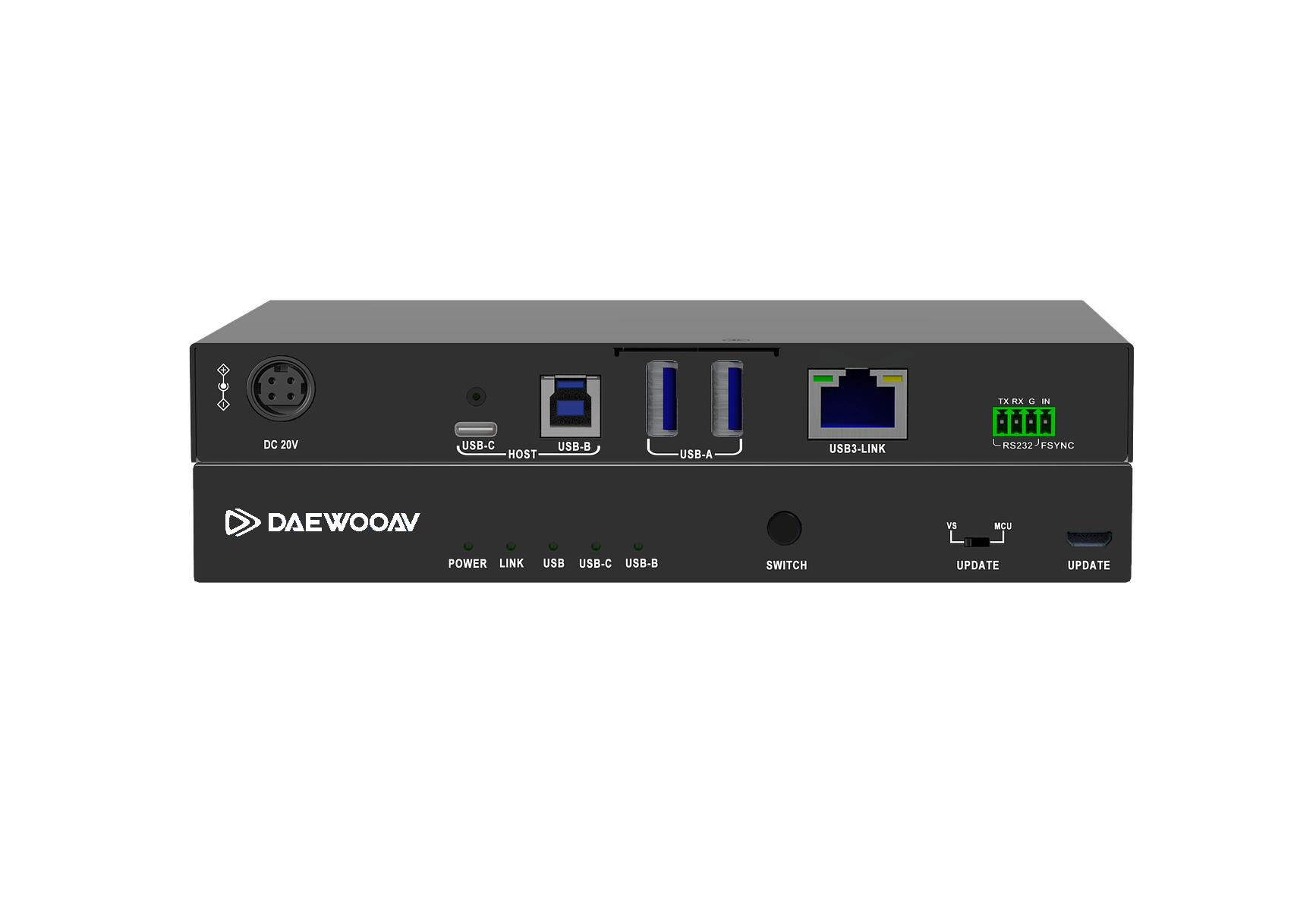

| Transmitter (DUCS-MTX) | |
| Input Ports | 1 x USB-C HOST |
| 1 x USB-B HOST | |
| 2 x USB-A DEVICE | |
| 1 x USB-C DEVICE | |
| 1 x RS232 & FSYNC (3.5mm, 4-Pin Phoenix Connector) | |
| 1 x POWER | |
| 1 x UPDATE (Micro-USB) | |
| Output Port | 1 x USB3-LINK (RJ45) |
| USB Standard | USB 3.2 Gen1, and backward compatible with USB 3.0, USB 2.0, and USB 1.1 standards |
| Data Rate | Up to 5Gbit/s |
| Device Dimension (W x H x D) mm | 215 x 25 x 120 |

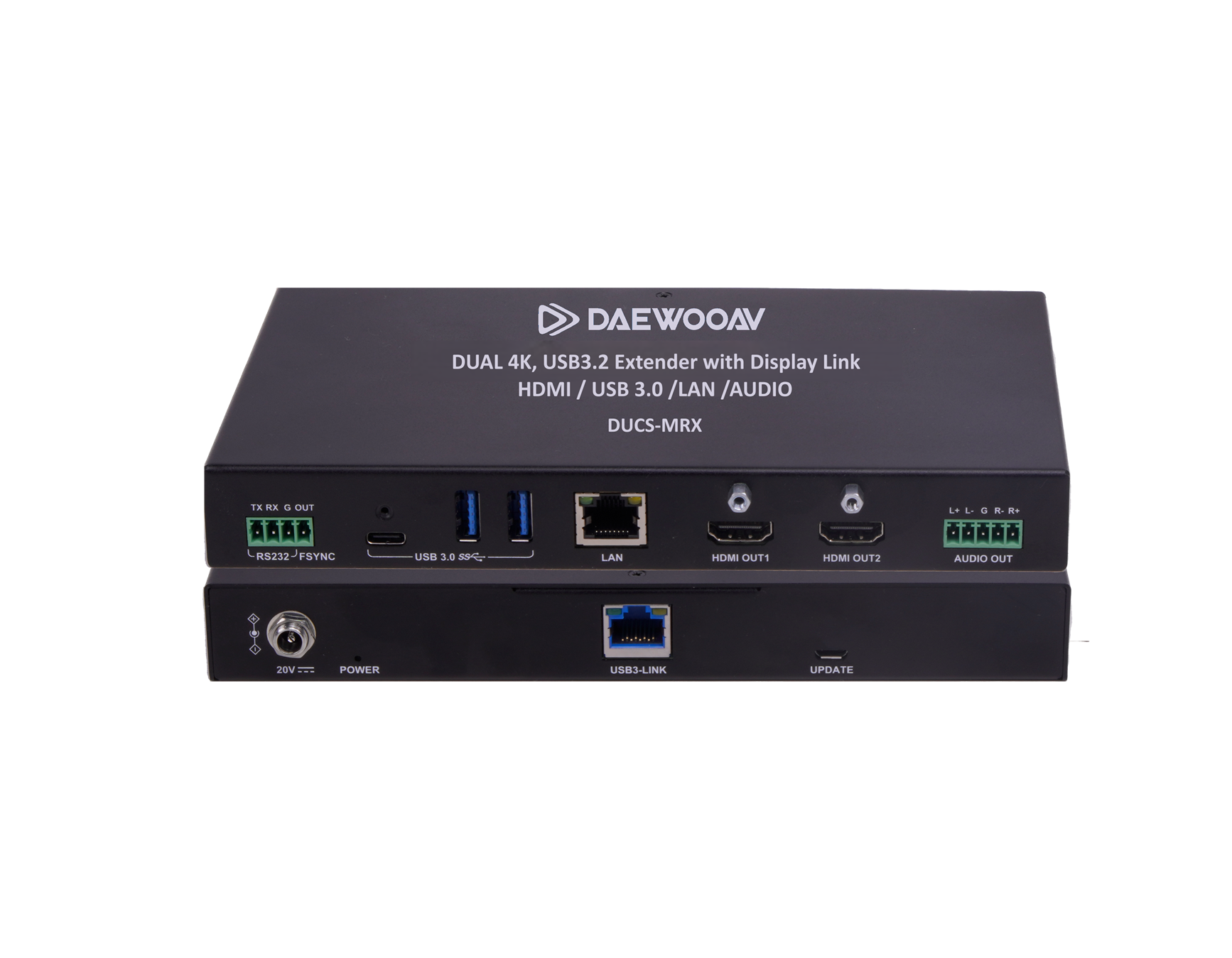

| Receiver (DUCS-MRX) | |
| Input Ports | 1 x USB3-LINK (RJ45) |
| 1 x POWER | |
| 1 x UPDATE (Micro-USB) | |
| Output Ports | 2 x HDMI PORTS |
| 2 x USB-A DEVICE | |
| 1 x USB-C DEVICE | |
| 1 x RS232 & FSYNC (3.5mm, 4-Pin Phoenix Connector) | |
| 1 x AUDIO OUT | |
